Island Pal Separators

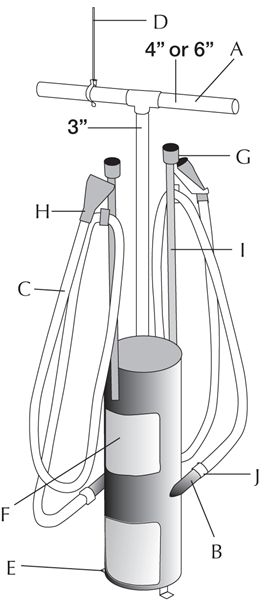

Island Pal Separators bring the benefits of AutoVac’s filter separators to the point of use. The Island Pal combines centrifugal action with the dust-trapping feature of stocking-type filter bags. The vacuum producer creates suction which pulls air, dirt and debris from the end user’s nozzle, through the vacuum hose and into the lower portion of the filter separator. Here, a specially designed cone guides debris downward into a waste container. The air then passes through a series of filter bags contained in the upper portion of the filter separator.

A properly sized separator with appropriate filter bags will collect 99.9% at three microns – allowing only clean dry air to pass through the piping system and vacuum producer. This ensures high suction performance and helps eliminate piping failures.

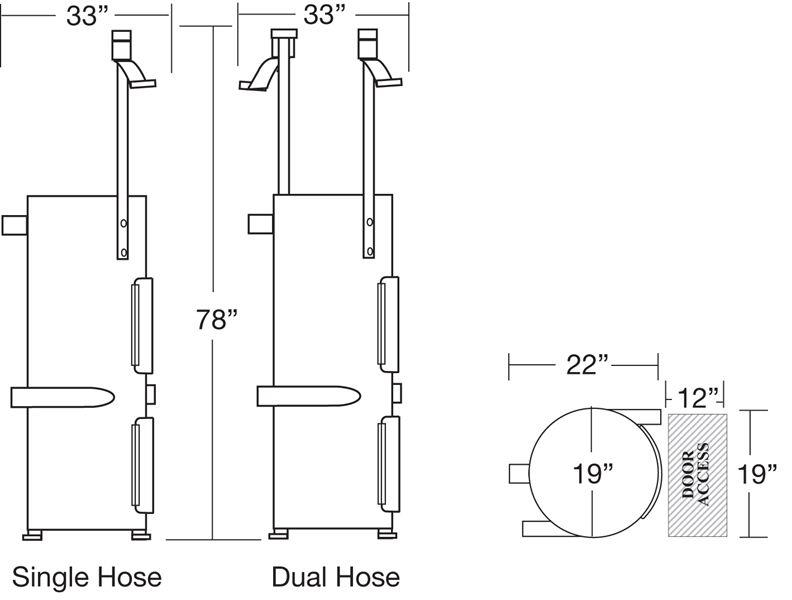

Island Pal Separator Models

  • Item #
  • Vacuum Producer Pipe Connection
  • Vacuum System Pipe Connection
  • Vacuum Producer Size HP
  • Construction Material
  • Types
  • C353-1001
  • 1 ea. 3″ pipe to turbine
  • 2 ea. 2″ fpt inlet valves
  • 7.5 – 25 horsepower turbines
  • 12 ga. Steel
  • Dual Vac Hose Drop Kit
  • C353-1002
  • 1 ea. 3″ pipe to turbine
  • 1 ea. 2″ fpt inlet valve
  • 7.5 – 25 horsepower turbines
  • 12 ga. Steel
  • Single Vac Hose Drop Kit
