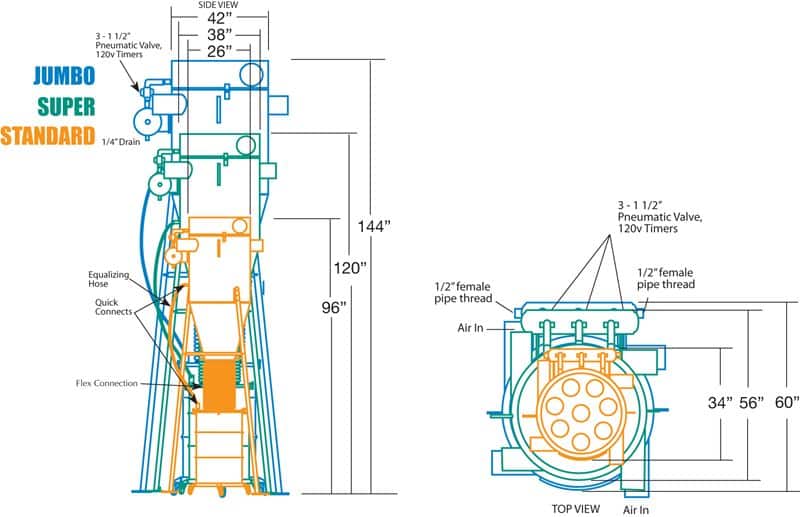

Pulse Jet Hopper Separators

AutoVac’s Pulse Jet Hopper Separators separate debris from the airstream in two ways. First “dirty” air passes through a cyclonic chamber that forces debris downward and into a collection drum. Air and remaining particles then pass through a second chamber equipped with filter bags. These filter bags typically capture between 95% and 99% of particles at 3 microns. Pneumatic valve timers periodically send powerful bursts of air into the filter chamber to break apart collected debris and send it into the collection drum.

AutoVac’s team of professionals will help you select the proper filtration devices from our existing models and sizes – or we can design a custom hopper separator to suit your exact requirements.

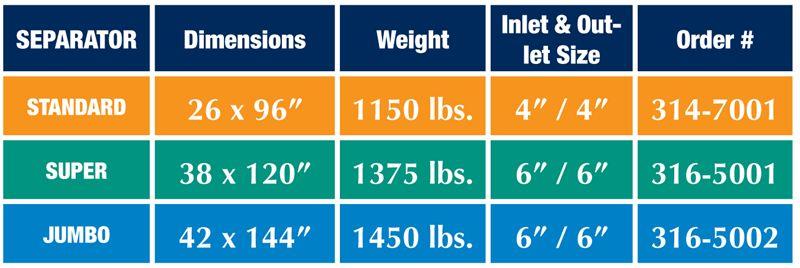

Pulse Jet Separator Models

  • Item #
  • Item Name
  • Dimensions
  • Weight
  • Inlet Size
  • Outlet Size
  • C314-7001
  • STANDARD Primary Hopper Separator
  • 26 x 96 in
  • 1150 lb
  • 4” inlet
  • 4” outlet
  • C316-5001
  • SUPER Primary Hopper Separator
  • 38 x 120 in
  • 1375 lb
  • 6” inlet
  • 6” outlet
  • C316-5002
  • JUMBO Primary Hopper Separator
  • 42 x 144 in
  • 1450 lb
  • 6” inlet
  • 6” outlet
