Primary Separators

AutoVac’s Primary Separator – your central vacuum system’s first line of defense in filtration. “Dirty” air is pulled through vacuum hoses and piping, and then directly into the primary separator. Waste and debris pass around a precisely engineered baffle and then drop out of the airstream through centrifugal action.

Debris drops into a waste container while air and any remaining particles move on to the filter separator(see Filter Separator page). Primary separators are compatible with most central vacuum systems and are strongly recommended for systems with heavy airflow and/or underground piping.

PRODUCT FEATURES

  • Large durable polypropylene dirt bucket is virtually unbreakable and rust-proof.
  • Leak-proof “U” channel door gasket with sealed air chamber expands and contracts keeping door panel leak-free.
  • Lockable door latch assembly.
  • All metal surfaces of separator are coated with industrial grade primer and automotive grade multi-part urethane top coat.
  • 25-year proven design made from heavy grade iron, heavy gauge sheet steel and assembled with continuous welded seams.

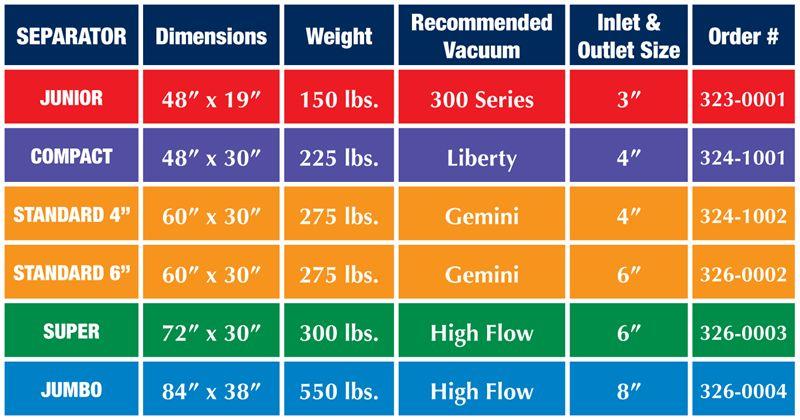

Primary Separator Models

  • Item #
  • Dimensions
  • Weight
  • Recommended Vacuum
  • Inlet & Outlet Sizes
  • C323-0001
  • 48 x 19 in
  • 150 lb
  • 300 Series Vacuum
  • 3 in
  • C324-1001
  • 48 x 30 in
  • 225 lb
  • Liberty Vacuum System
  • 4 in
  • C324-1002
  • 60 x 30 in
  • 275 lb
  • Gemini Vacuum System
  • 4 in
  • C326-0002
  • 60 x 30 in
  • 275 lb
  • Gemini Vacuum System
  • 6 in
  • C326-0003
  • 72 x 30 in
  • 300 lb
  • High Flow Vacuum System
  • 6 in
  • C326-0004
  • 84 x 38 in
  • 550 lb
  • High Flow Vacuum System
  • 8 in
