Gemini Vacuum System - 400 Series (Standard 3 Phase)
The Gemini Vacuum System – 400 Series includes two AutoVac vacuum producers and a single filter separator. Models in this series can handle from 6 to 14 simultaneous users and up to 25 HP power. Choose the Gemini 400 Series model below that works best for you.

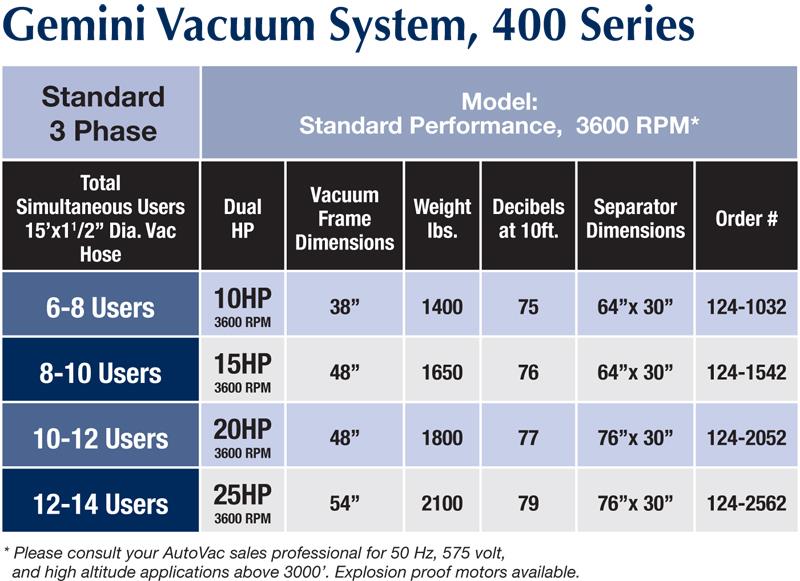

Gemini – 400 Series Product Models
- Item #
- Total Simultaneous Users
- Power (Dual HP) @ 3600 RPM
- Vacuum Frame Dimensions
- Weight
- Noise @ 10 feet
- C124-1032
- 6-8 Simultaneous Users
- 10 hp
- 52” wide x 33” high x 38” long
- 1400 lb
- 75 dB
- C124-1542
- 8-10 Simultaneous Users
- 15 hp
- 52” wide x 33” high x 48” long
- 1650 lb
- 76 dB
- C124-2052
- 10-12 Simultaneous Users
- 20 hp
- 52” wide x 33” high x 48” long
- 1800 lb
- 77 dB
- C124-2562
- 12-14 Simultaneous Users
- 25 hp
- 52” wide x 33” high x 54” long
- 2100 lb
- 79 dB
