Product Specifications
-
Dimensions:
60 x 30 in -
Weight:
275 lb -
Recommended Vacuum:
Gemini Vacuum System -
Inlet & Outlet Sizes:
4 in
Equipment Layout
- A. These lines carry dirt and debris from vacuum cleaning system, one or two lines as required.
- B. Primary separator vacuum supply lines hook to lower pipe connection on filter separator where dirt enters from vacuum cleaning system. Always connect these lines to a filter separator, never into a vacuum producer directly!
- C. Hold down leg support 3 locations typical.
- D. Support pipe every 10 ft. minimum with an approved support system. Never allow pipe to sag. Install hangers as needed. Sway brace as required.

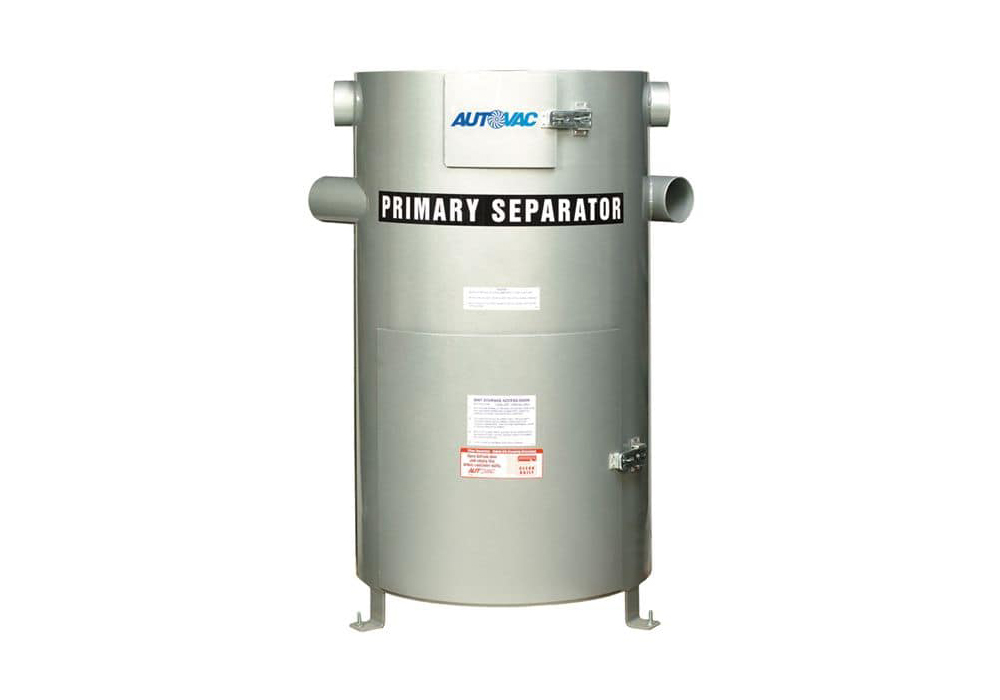

- E. Primary Separator Model #324-1001.
- F. 3″, 4” or 6″ dia. pipe respectively carries dirt from system. See pipe system drawings.
